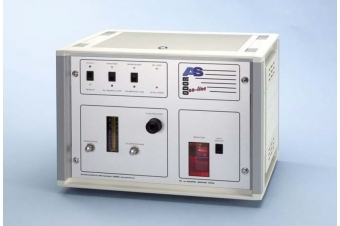

ODOR on-line

MAKER Axel Semrau
MODEL ODOR on-line
Application Underground gas storage, gas power plants, public gas facilities, LNG Terminal.
Parameter THT, mercaptan, H2S
Product Detail

▷Specification



◼ Parameters: THT, H2S, Mercaptans

◼ Application range: THT 0.1 mg/m³ up to approx. 100 mg/m³

    Mercaptans 0.1 mg/m³ up to approx. 100 mg/m³

    H2S 0.1 mg/m³ up to approx. 100 mg/m³

◼ Detection range: H2S below 0.05 mg/m³ (0.035 ppm)

◼ Dimension and weight: W 56cm x D 36cm x H 36cm / 14 kg

◼ Power requirement: 12 V DC, 115 V AC, 230 V AC; Automatic restart after power failure



▷Features



◼ It can be mounted on a vehicle, making it highly suitable for mobile measurements.

◼ Constructed according to ISO 19739 (German standard DIN 51 855-07-GC/ASTM D7493-08)

◼ User- Friendly (Multitask) - Measurement in progress Measurement DATA Evaluating

◼ Automatic calibration available (Simple)

◼ It is resistant to pollution caused by dust, moisture, etc by using Packed columns.

◼ Easily collect sample with gas sampling bulbs

◼ Mobile measurement using gas chromatograph is possible on-site

◼ Supports Automatic and Hand-worked measurements

◼ Remote system maintenance with PC

◼ Reduce operating gas costs by operating with dry oil-free com-pressed air.



▷Applications



Underground gas storage, gas power plants, public gas facilities, LNG Terminal.
